TC-161SD

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1972/1973 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
131585

Schematics

TC-161SD; Sony Corporation; (ID = 1637719) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637720) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637697) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637698) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637699) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637700) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637701) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637702) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637703) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637704) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637705) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637706) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637707) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637708) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637709) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637710) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637711) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637712) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637713) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637714) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637715) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637716) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637717) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 1637718) R-Player — Sony Corporation; TC-161SD (3)

TC-161SD; Sony Corporation; (ID = 2772261) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2772260) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2772262) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2182269) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2182272) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2182274) R-Player — Sony Corporation; TC-161SD (1)

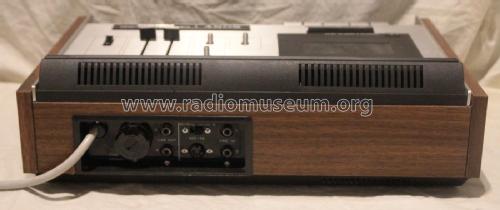

TC-161SD; Sony Corporation; (ID = 2182275) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2182276) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2255159) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2255160) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2255161) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 459479) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 459480) R-Player — Sony Corporation; TC-161SD (1)

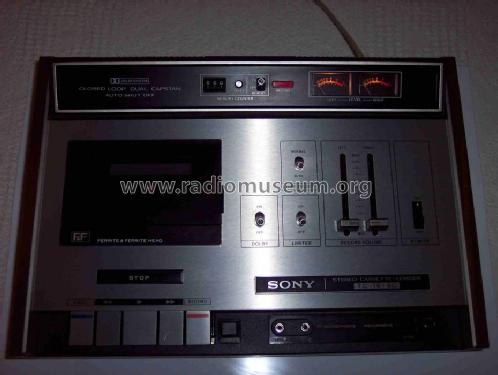

TC-161SD; Sony Corporation; (ID = 459481) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 459482) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 459483) R-Player — Sony Corporation; TC-161SD (1)

TC-161SD; Sony Corporation; (ID = 2846284) R-Player — Sony Corporation; TC-161SD (2)
Sony Print Ad - Convoy Technocentre

TC-161SD; Sony Corporation; (ID = 2846288) R-Player — Sony Corporation; TC-161SD (2)
Sony Print Ad 1973

TC-161SD; Sony Corporation; (ID = 2846291) R-Player — Sony Corporation; TC-161SD (2)
Sony Print Ad 1973

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Cassette-Recorder or -Player

Power type and voltage
Alternating Current supply (AC) / 110; 127; 220; 240 Volt

Loudspeaker
- For headphones or amp.

Material
Various materials

from Radiomuseum.org
Model: TC-161SD - Sony Corporation; Tokyo

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
400 x 130 x 275 mm / 15.7 x 5.1 x 10.8 inch

Notes
Cassette Deck Tape Recorder - Closed Loop Dual Capstan Auto Shut Off - "F&F" Ferrite & Ferrite Head. Antrieb: 1 Hysterese-Synchron-Motor, Doppel-Capstan mit 2 Schwungmassen und 2 Gummiandruckrollen, Bandgeschwindigkeit: 4,75 cm/s, Gleichlaufschwankungen: RMS 0,1%, DIN +-0,3%, Aufzeichnung: Viertelspur-2-Kanal Stereo, Umspulzeit für C-60: 90s, Frequenzbereich (DIN): FE2O3: 40...12500 Hz, CrO2: 40...15000 Hz, Gesamtverzerrungen: 2%, Vormagnetisierungsfrequenz: 85 kHz, Rauschabstand: 49 dB, mit Dolby: 54 dB bei 1 kHz, 59 dB über 5 kHz, Eingänge: 2x Mikrofon, Empfindlichkeit (niederohmig) 0,2mV (-72 dB), 2x direkt (line in) Impedanz: 100 kOhm, 60 mV (-22 dB), Ausgänge: 2x direkt (line out) Impedanz über 10 kOhm 0,78V (0 dB) bei 100 kOhm Belastung, Stereokopfhörer 8 Ohm, 31 mV (-28 dB), DIN-Buchse: Eingangsimpedanz: 3,7 kOhm, Ausgangsimpedanz: 7 kOhm, Bestückung: 2 FET, 40 Transistoren, 30 Dioden, Leistungsaufnahme: 25W

Net weight (2.2 lb = 1 kg)
6.8 kg / 14 lb 15.6 oz (14.978 lb)

Source of data
- - Data from my own collection

Literature/Schematics (1)
Funkschau (Heft 20, 28.September 1973, Seite 2418)

Author
Model page created by J. Virgilio Santos. See "Data change" for further contributors.
