TC-560

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1968 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
262832

Schematics

TC-560; Sony Corporation; (ID = 1767736) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767737) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767738) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767739) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767687) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767688) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767689) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767690) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767691) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767692) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767694) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767695) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767696) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767697) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767698) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767699) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767701) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767702) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767704) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767706) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767708) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767710) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767711) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767712) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767713) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767714) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767715) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767716) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767717) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 1767718) R-Player — Sony Corporation; TC-560 (3)

TC-560; Sony Corporation; (ID = 2484772) R-Player — Sony Corporation; TC-560 (2)

TC-560; Sony Corporation; (ID = 2484773) R-Player — Sony Corporation; TC-560 (2)

TC-560; Sony Corporation; (ID = 2484774) R-Player — Sony Corporation; TC-560 (2)

TC-560; Sony Corporation; (ID = 2484775) R-Player — Sony Corporation; TC-560 (2)

TC-560; Sony Corporation; (ID = 1763543) R-Player — Sony Corporation; TC-560 (2)

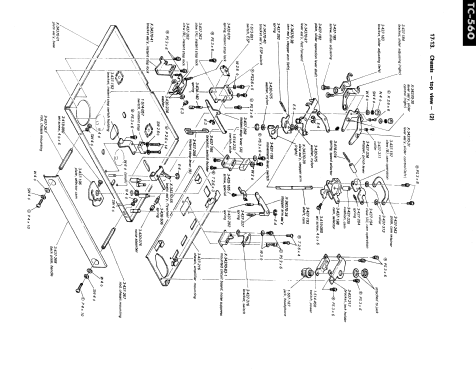

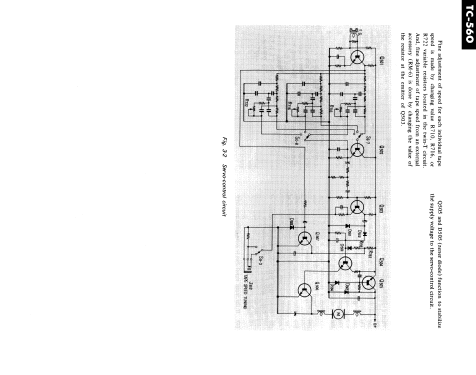

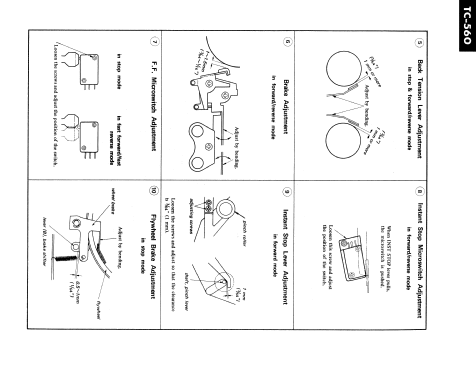

Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
56

Semiconductors

Power type and voltage
Other, details in remarks or not known. / AC:100; 110; 117; 125; 220; 240 / DC:12 Volt

Loudspeaker
2 Loudspeakers / Ø 5 inch = 12.7 cm

Power out
10 W (undistorted)

Material
Wooden case

from Radiomuseum.org
Model: TC-560 - Sony Corporation; Tokyo

Shape
Tablemodel, Box - most often with Lid (NOT slant panel).

Dimensions (WHD)
520 x 286 x 435 mm / 20.5 x 11.3 x 17.1 inch

Notes
Sony TC-560 Reel to Reel Tape Recorder

Four track stereo and mono recorder

7 1/2 ips (19 cm/s), 3 3/4 ips (9,5 cm/s), 1 7/8 ips (4,8 cm/s)

20-21.000Hz at 7 1/2 ips
20-15.000Hz at 3 3/4 ips
20-8.000Hz at 1 7/8 ips

Power output 5W per channel

56 transistors and 26 diodes

AC 100V, 110V, 117V, 125V, 220V and 240V 50/60Hz or DC 12V (through a common 4 prong connector as used in portable TV's).

Net weight (2.2 lb = 1 kg)
23 kg / 50 lb 10.6 oz (50.661 lb)

Author
Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
