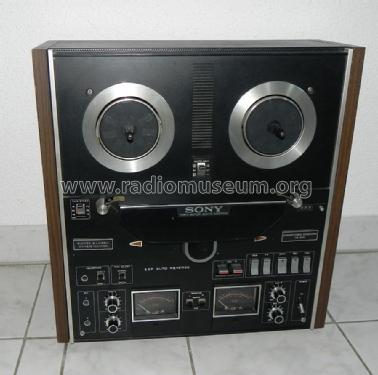

TC-580
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1972 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 227923
Ebay Auction

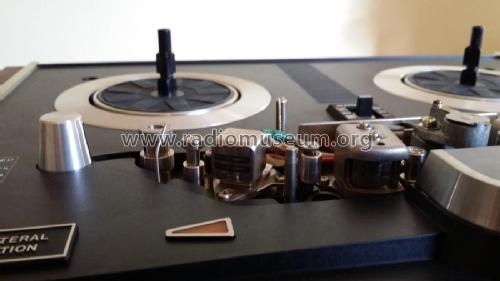

close up of heads
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: TC-580 - Sony Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 445 x 465 x 225 mm / 17.5 x 18.3 x 8.9 inch
- Notes
-
4-Spur, Bandgeschwindigkeit: 4,75, 9,5 und 19 cm/s
Maximaler Spulendurchmesser 18cm, 3 Motoren, 3 Tonköpfe.
Automatische Umschaltung der Laufrichtung für Aufnahme und Wiedergabe.

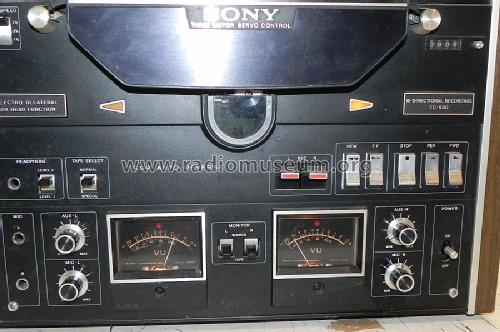

Zwei beleuchtete VU-Meter.
- Net weight (2.2 lb = 1 kg)
- 19.5 kg / 42 lb 15.2 oz (42.952 lb)
- Price in first year of sale
- 1,988.00 DM
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
