• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 111244

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / D: 2 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TC-D5M - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 237 x 48 x 168 mm / 9.3 x 1.9 x 6.6 inch

• Notes

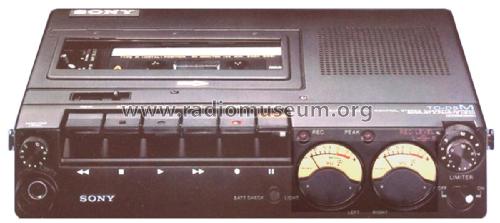

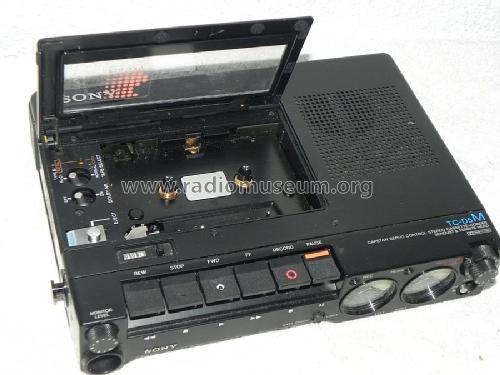

• Portable stereo cassette player/recorder, top loader, included was a hard case, M stands for useable for Metallic cassettes, Dolby; VU-meters, limiter.

  Ext. mains adaptor/power supply:

  • USA 120 V with type AC-61;
  • Europe 110, 127, 220, 240 V with type AC-122;
  • Car 12 V adapter DCC-127A or DCC-120

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Mentioned in
• - - Manufacturers Literature
