TFM-116L

TFM-116L; Sony Corporation; (ID = 759978) Radio

TFM-116L; Sony Corporation; (ID = 759979) Radio

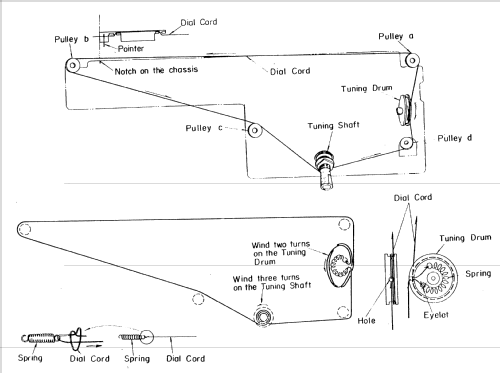

TFM-116L; Sony Corporation; (ID = 759980) Radio

TFM-116L; Sony Corporation; (ID = 759981) Radio
TFM-116L; Sony Corporation; (ID = 2481914) Radio TFM-116L; Sony Corporation; (ID = 2481912) Radio
TFM-116L; Sony Corporation; (ID = 2481909) Radio TFM-116L; Sony Corporation; (ID = 2481920) Radio
TFM-116L; Sony Corporation; (ID = 2481916) Radio TFM-116L; Sony Corporation; (ID = 2481918) Radio
TFM-116L; Sony Corporation; (ID = 2481911) Radio TFM-116L; Sony Corporation; (ID = 2481910) Radio
TFM-116L; Sony Corporation; (ID = 1252752) Radio TFM-116L; Sony Corporation; (ID = 1252754) Radio
Use red slider bar for more.
TFM-116L; Sony Corporation; (ID = 2481914) Radio
Sony Corporation;: TFM-116L [Radio] ID = 2481914 1219x936
Select picture or schematic to display from thumbnails on the right and click for download.
For model TFM-116L, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SA166 2SA166 2SA166 2SA121 2SA122 2SA122 2SA122 2SD64 2SD65 2SB382 2SB382 1T23 1T26
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TFM-116L - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 272 x 205 x 95 mm / 10.7 x 8.1 x 3.7 inch
Notes

SONY TFM-116L portable, tone control, 2 FM rod antennas,
jacks: MPX out, headphone, aux, 2 earphone, external antenna.

FM: 86,5-108 MHz
OL: 105-350 kHz
OM: 350-1650 kHz

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data - - Manufacturers Literature

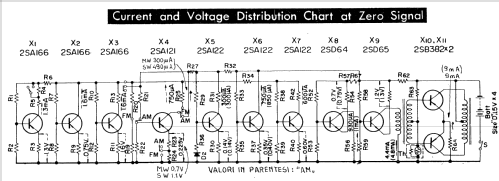

Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 6° Antonelliana)
