• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121230

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.32 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

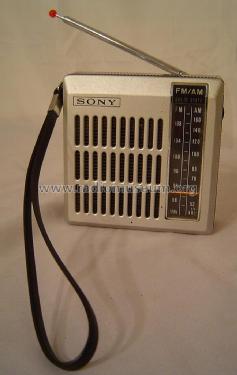

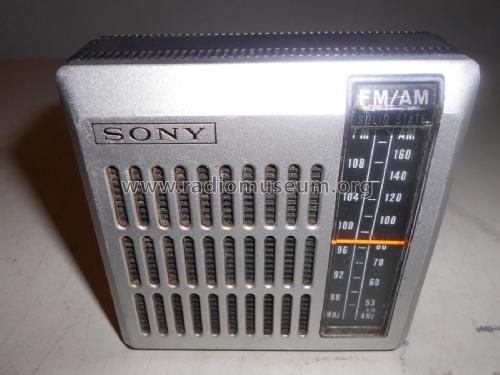

• Model: TFM-3700W [USA & General Export Model] - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 100 x 48 mm / 3.9 x 3.9 x 1.9 inch

• Notes
• Sony TFM-3700W (USA & General export model);370312071461 AM: 530 - 1.605 kHz,370312071461 FM: 87.5 - 108 MHz.

• Net weight (2.2 lb = 1 kg)
• 0.330 kg / 0 lb 11.6 oz (0.727 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
