TFM-7350W
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1985 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237235

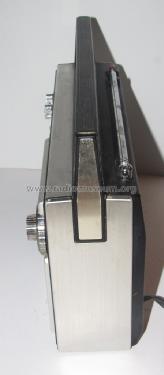

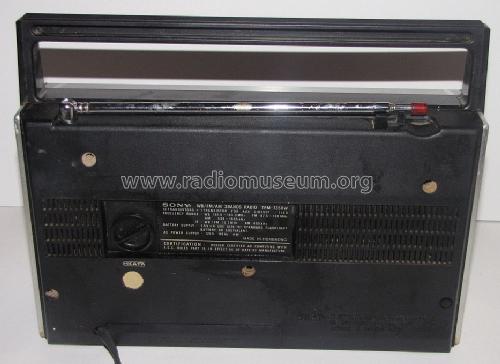

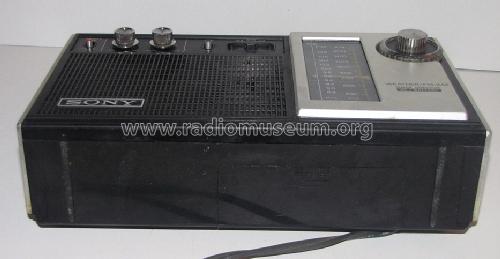

By Courtesy Of EBAY User: iseenone2
By Courtesy Of EBAY User: iseenone2
By Courtesy Of EBAY User: iseenone2
By Courtesy Of EBAY User: iseenone2
By Courtesy Of EBAY User: iseenone2
By Courtesy Of EBAY User: iseenone2
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 120 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TFM-7350W - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10 x 8 x 3 inch / 254 x 203 x 76 mm
- Notes
-

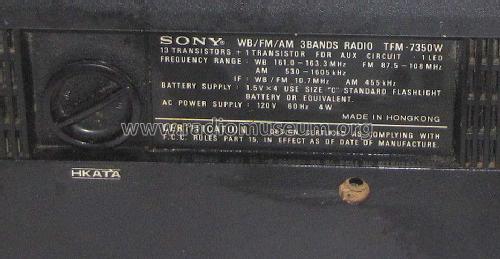

Sony Portable WB/FM/AM 3Bands Radio Model TFM-7350W.
Tuning Range: WB 161,0 - 163,3 MHz, AM 530 -1605 kHz, FM 87,5 - 108 MHz.
AFC, Telescopic antenna, Carrying Handle.
Power Consumption 4 Watts.
Made in Hong Kong.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
