• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140561

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 120 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

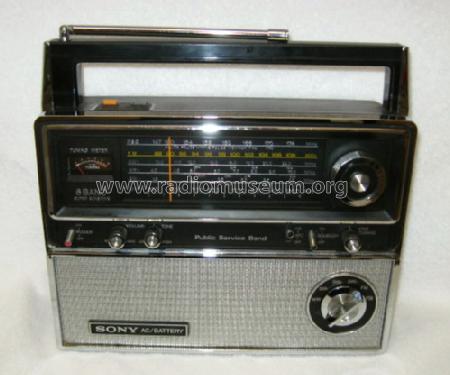

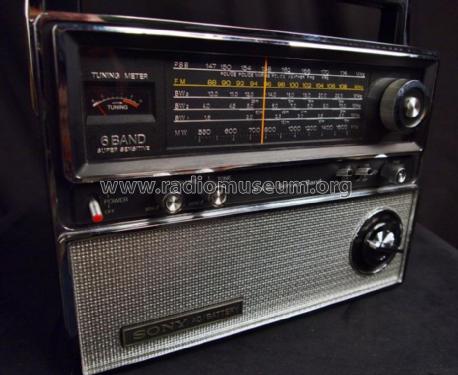

• Model: TFM-8000W - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Sony TFM-8000W, PSB/FM/MW/SW1-SW2-SW3 6 Bands, 6 Band Super Sensitive, Public Service Band;
  1 FET + 12 Transistors + 4 Transistors for auxiliary circuits, coverage:
  PSB: 147 - 174 MHz, FM 87.5 - 108 MHz, AM-MW,
  SW1: 1.6 - 4 MHz,
  SW2: 4 - 10 MHz,
  SW3: 10 - 22 MHz,

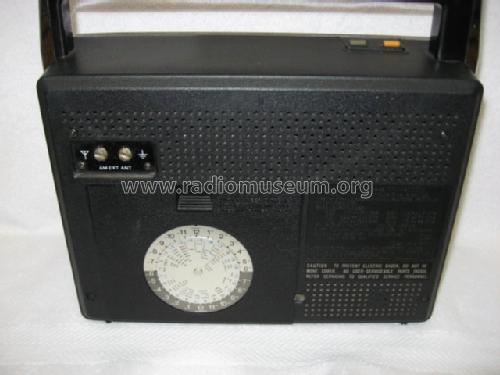

  ext. AM antenna-in screw terminals, tuning/batt. meter, fine tuning, AFC & squelch switch, tone control, dial light, earphone and tape jack, distributed by General Distributors Ltd., Winnipeg, Manitoba.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
