TFM-8601L
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1971 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 157061

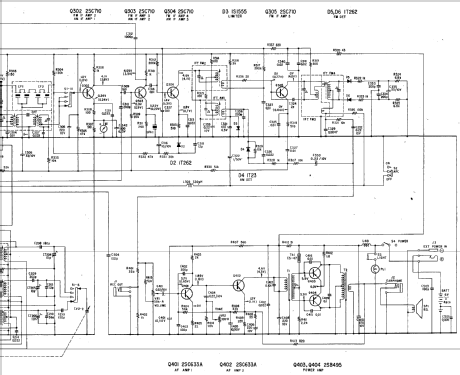

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / D: 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TFM-8601L - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 252 x 162 x 72 mm / 9.9 x 6.4 x 2.8 inch
- Notes
-
Semiconductors listed one per type and not all: 12 Transistor, 1 FET, 8 Diodes. 1T262 not found in any database.
Jack for earphone and output for record. Tone control. Tuning meter.
