• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164197

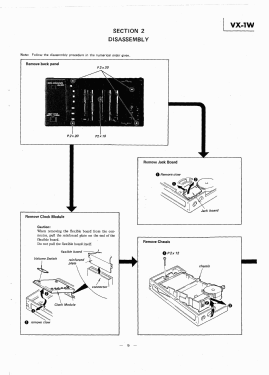

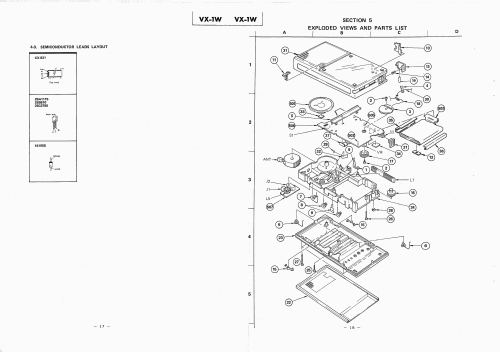

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 2x1,5& 3x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.08 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

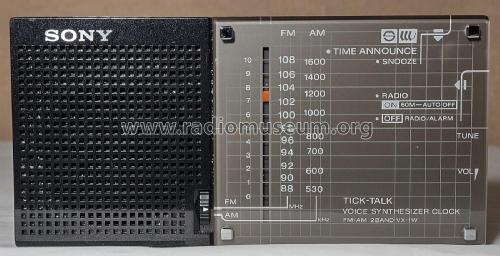

• Model: Tick Talk VX-1W - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 143 x 70 x 29 mm / 5.6 x 2.8 x 1.1 inch

• Notes
• Sony Model VX-1W ,made in Japan, Voice Synthesizer clock (W= English language). Time is spoken but not indicated!

• Net weight (2.2 lb = 1 kg)
• 0.265 kg / 0 lb 9.3 oz (0.584 lb)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
