• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 123516

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AD7 or 12AX7 12AD7 or 12AX7 6AU6 6AU6 6AQ5 6AQ5 12BH7A 6CA4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 117; 125; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

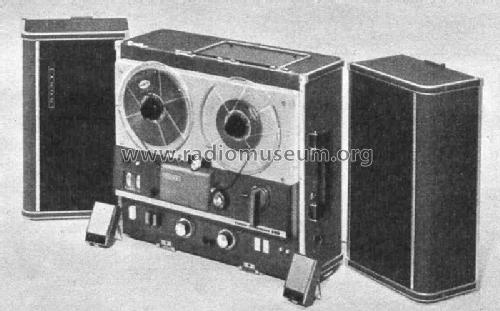

• Model: Stereo Tapecorder TC-500 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Notes

• 4-Spur Stereo; 9,5 und 19 cm/sec., Löschfrequenz 80 kHz, Ausgang 3 W pro Kanal, Leistungsaufnahme 110 W.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Mentioned in
• Funkschau (13. 1964)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
