• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96891

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA70 2SA122 2SC76 2SC76 2SD64 2SD65 2SB383 2SB383 1T23 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 1 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

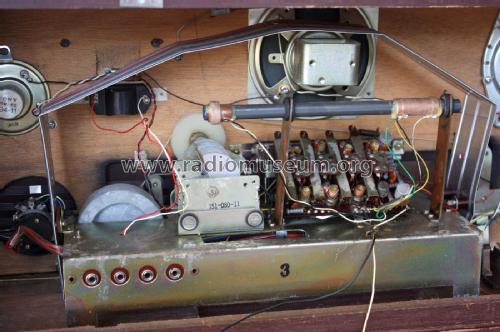

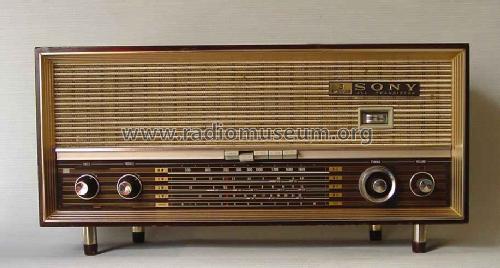

• Model: TR827 - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 300 x 190 mm / 23.6 x 11.8 x 7.5 inch

• Notes
• SW: 1,6-4,3 / 4,3-12 / 12-22 MHz.
  Assemblé sous license en Indonesie.
  Assembled under licence in Indonesia.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
