TR-712

TR-712; Sony Corporation; (ID = 603715) Radio
TR-712; Sony Corporation; (ID = 691645) Radio TR-712; Sony Corporation; (ID = 242824) Radio
TR-712; Sony Corporation; (ID = 242826) Radio TR-712; Sony Corporation; (ID = 242827) Radio
TR-712; Sony Corporation; (ID = 242829) Radio TR-712; Sony Corporation; (ID = 242830) Radio
TR-712; Sony Corporation; (ID = 262833) Radio TR-712; Sony Corporation; (ID = 827559) Radio
TR-712; Sony Corporation; (ID = 1774707) Radio TR-712; Sony Corporation; (ID = 1774708) Radio
Use red slider bar for more.
TR-712; Sony Corporation; (ID = 691645) Radio
Sony Corporation;: TR-712 [Radio] ID = 691645 933x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-712, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2T7 2T7 2T7 2T6 2T6 2T8 or. 2T6 or. 2SB52 2T8 or. 2T6 or. 2SB52 1T23 1T51
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 0.12 W (0.2 W max.)
from Radiomuseum.org Model: TR-712 - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11.5 x 7 x 4.5 inch / 292 x 178 x 114 mm
Notes

Two versions of this model are known with a variation in the push pull output transistors.

  1. 2SB52 PNP transistors are used in the pushpull output stage.
  2. 2T8 NPN transistors with bias provided by a 1T51 diode in the pushpull output stage.

Known case colours are, blue, bone, beige & olive green.

Ian Batty has written a very informative article on this model in the Silicon Chip magazine, March, 2017.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 59.00 Dolar

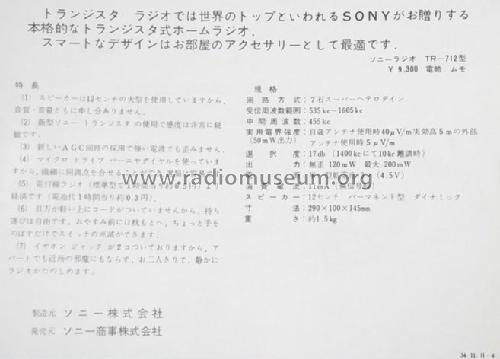

Source of data -- Original prospect or advert
Mentioned in Silicon Chip, March 2017, page 90

Model page created by Hugo Sneyers. See "Data change" for further contributors.
