Super Sensitive TR-815B

Super Sensitive TR-815B; Sony Corporation; (ID = 164327) Radio
Super Sensitive TR-815B; Sony Corporation; (ID = 422523) Radio Super Sensitive TR-815B; Sony Corporation; (ID = 422525) Radio
Super Sensitive TR-815B; Sony Corporation; (ID = 422526) Radio Super Sensitive TR-815B; Sony Corporation; (ID = 422524) Radio
Super Sensitive TR-815B; Sony Corporation; (ID = 690572) Radio Super Sensitive TR-815B; Sony Corporation; (ID = 690573) Radio
Super Sensitive TR-815B; Sony Corporation; (ID = 2301576) Radio Super Sensitive TR-815B; Sony Corporation; (ID = 2301577) Radio
Super Sensitive TR-815B; Sony Corporation; (ID = 2301578) Radio Super Sensitive TR-815B; Sony Corporation; (ID = 2301579) Radio
Use red slider bar for more.
Super Sensitive TR-815B; Sony Corporation; (ID = 422523) Radio

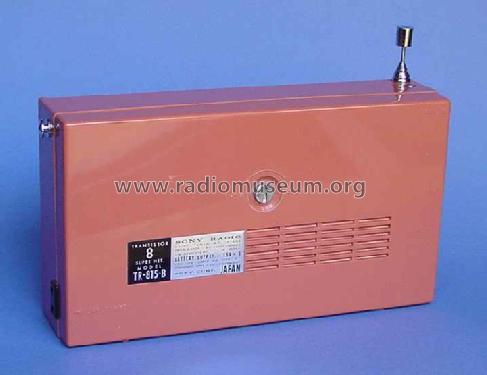

Sony Corporation;: Super Sensitive TR-815B [Radio] ID = 422523 714x554
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Sensitive TR-815B, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2T201 2T201 2T769 2T768 2T652 2T651 2T323 2T323 1T23
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / C: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super Sensitive TR-815B - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 195 x 110 x 50 mm / 7.7 x 4.3 x 2 inch
Notes

SW Range 3.9 - 12MHz.

See also TR-815Y with different SW band reception.

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 12'200.00 JPY
Circuit diagram reference Beitman Radio Diagrams Vol. 22, 1962
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 607 Folder 10 12-1962)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Sony Corporation; Tokyo
