TR-832

TR-832; Sony Corporation; (ID = 1684110) Radio

TR-832; Sony Corporation; (ID = 1684111) Radio
TR-832; Sony Corporation; (ID = 1596607) Radio TR-832; Sony Corporation; (ID = 533599) Radio
TR-832; Sony Corporation; (ID = 1596606) Radio TR-832; Sony Corporation; (ID = 1596608) Radio
TR-832; Sony Corporation; (ID = 1596609) Radio
Use red slider bar for more.
TR-832; Sony Corporation; (ID = 1596607) Radio
Sony Corporation;: TR-832 [Radio] ID = 1596607 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-832, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA122 2SA122 2SC76 2SC76 2SD65 2SD65 2SB52 2SB52 1T23 1T23
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / C: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TR-832 - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Sony TR-832;
Telescopic antenna.

Wave bands:

  • MW: 530 - 1605 kHz
  • SW: 3,5 - 12 MHz.

This model sold in Australia during 1964 & 1965 for £34/13/-. Price includes batteries.

Source of data - - Manufacturers Literature
Mentioned in Mingay's Price Service (Aug 1964 & Feb 1965.)

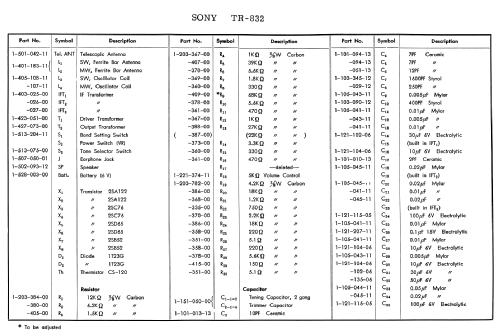

Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page S48a.)

Model page created by a member from A. See "Data change" for further contributors.
