Trinitron Color Video Monitor PVM-6030ME

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 291165

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Other, details in remarks or not known. / DC 12-18 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Trinitron Color Video Monitor PVM-6030ME - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 190 x 140 x 300 mm / 7.5 x 5.5 x 11.8 inch
  • Notes

  • Sony Trinitron Video Color Monitor PVM-6030ME für die Wiedergabe von Pal / Secam Videosignalen. 1 Video Ein / Ausgang (Durchschliff) 75 Ohm abschließbar

    Versorgungsspannung 12-18 Volt oder interner auswechselbarer Akku,

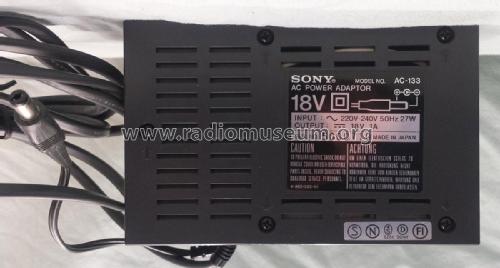

    mit extern andockbarem Netzteil 220-240V AC

    Entspricht TV-Empfänger KV-6000BE, jedoch ohne HF-Teil.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Author
  • Model page created by Axel Paap. See "Data change" for further contributors.
