TV-500 UET

TV-500 UET; Sony Corporation; (ID = 2154772) Television TV-500 UET; Sony Corporation; (ID = 2154771) Television
TV-500 UET; Sony Corporation; (ID = 2154774) Television TV-500 UET; Sony Corporation; (ID = 2154773) Television
TV-500 UET; Sony Corporation; (ID = 2154775) Television TV-500 UET; Sony Corporation; (ID = 1999148) Television
TV-500 UET; Sony Corporation; (ID = 1999149) Television TV-500 UET; Sony Corporation; (ID = 1999150) Television
TV-500 UET; Sony Corporation; (ID = 1999151) Television TV-500 UET; Sony Corporation; (ID = 2401993) Television
Use red slider bar for more.
TV-500 UET; Sony Corporation; (ID = 2154772) Television
Sony Corporation;: TV-500 UET [Television] ID = 2154772 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV-500 UET, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1969–1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) 23:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details

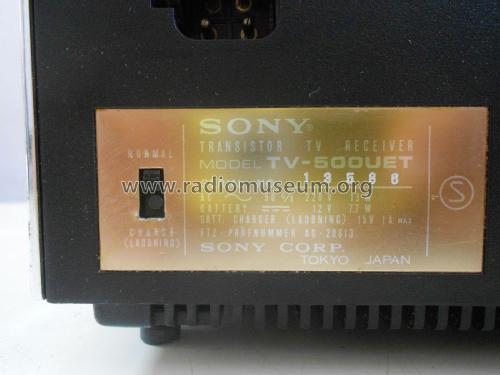

Power type and voltage Line / Batteries (any type) / 220; 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: TV-500 UET - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 207 x 1453 x 220 mm / 8.1 x 57.2 x 8.7 inch
Notes Portable 5" b/w TV with CCIR B/G and Italian standard VHF and UHF tuner.
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)

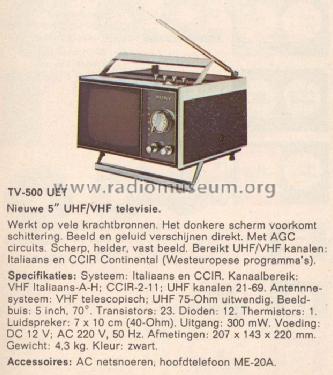

Source of data -- Original prospect or advert
Mentioned in Funk-Technik (FT) (11/1969, S. 435 / Werbeanzeige)

Model page created by a member from A. See "Data change" for further contributors.
