Videocassette Recorder SVO-9500MDP
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1994–1996 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 301192

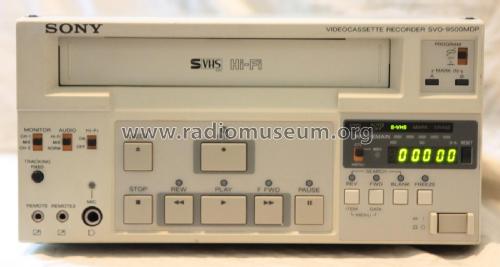

Doppelpack der identischen Frontseiten.
Rückseiten meiner Geräte.
Die niedrigere der Seriennummern.
Die höhere Seriennummer (1996).
- Wave bands
- - without
- Details
- Video-Taperecorder/-Player; Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 50/60 Hz, 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Videocassette Recorder SVO-9500MDP - Sony Corporation; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 270 x 144 x 370 mm / 10.6 x 5.7 x 14.6 inch
- Notes
-
Operating temperature: 5 ~ 40 °C (41 ~ 104 °F)
Tape speed: 23.39 mm/s
Power consumption: Less than 64 W
Frequency response: 20 Hz ~ 20 kHz (AFM), 50 Hz ~ 10 kHz (Standard)
S/N ratio: More than 45 dB
Luminance: FM recording
Chrominance: SC down conversion recording
Video signal system: PAL standard, CCIR monochrome
Video Input: BNC: 1.0 Vp-p, 75 Ω S-video : 4 pin DIN Y: 1.0 Vp-p, 75 Ω C: 0.300 Vp-p, at burst level, 75 Ω, sync negative
Tape Format: S-VHS or VHS
Video Recording System: Rotary 2-head helical scan system
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Author
- Model page created by Bartosz Szwed. See "Data change" for further contributors.
