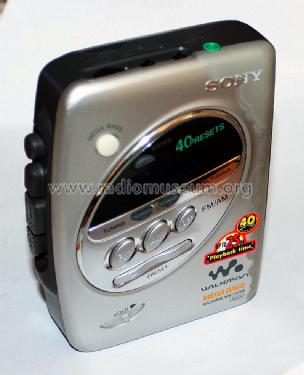

Walkman FM/AM Radio Cassette Player WM-FX288

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2001/2002
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 280384

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Dry Batteries / 2 x 1,5 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Walkman FM/AM Radio Cassette Player WM-FX288 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 92 x 116 x 38 mm / 3.6 x 4.6 x 1.5 inch
  • Notes

  • FM: 87,5-108MHz (0,1MHz step). AM: 531-1602 kHz (10 kHz step). 40 preset station. Alkaline Battery life: Cassette playback 25 hours, radio 40 hours. AVLS. Mega Bass.

  • Net weight (2.2 lb = 1 kg)
  • 0.149 kg / 0 lb 5.3 oz (0.328 lb)
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
