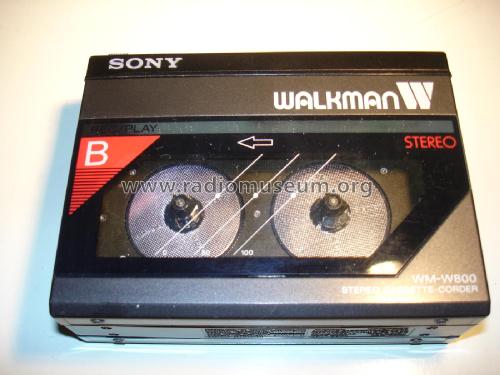

Walkman Stereo Cassette Corder WM-W800

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 263972

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1,5 / 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.016 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Walkman Stereo Cassette Corder WM-W800 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 116 x 88.7 x 38.2 mm / 4.6 x 3.5 x 1.5 inch
  • Notes

  • Sony Double-Cassette Walkman Model WM-W800.
    Frequency Response: Deck A (Dolby NR off 40-15000Hz)
    Deck B 60-9000Hz
    Power Requirements:
    3V DC (2x 1,5V, AA)
    Sony AC-02 AC Power Adaptor (optional):
    US, Canadian - 120V AC, 60Hz
    AEP - 220V AC, 50Hz
    UK - 240V, 50Hz
    Sony EBP-500 Battery Case (Optional) for use on two IEC designation R20 batteries (size D)
    Sony DCC-70 car battery cord (optional) for use with 12V car battery


  • Net weight (2.2 lb = 1 kg)
  • 0.350 kg / 0 lb 12.3 oz (0.771 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
