Watchman FD210BE

Watchman FD210BE; Sony Corporation; (ID = 2235916) Television Watchman FD210BE; Sony Corporation; (ID = 477573) Television
Watchman FD210BE; Sony Corporation; (ID = 477574) Television Watchman FD210BE; Sony Corporation; (ID = 477575) Television
Watchman FD210BE; Sony Corporation; (ID = 477576) Television Watchman FD210BE; Sony Corporation; (ID = 1813557) Television
Watchman FD210BE; Sony Corporation; (ID = 1813560) Television Watchman FD210BE; Sony Corporation; (ID = 1813562) Television
Watchman FD210BE; Sony Corporation; (ID = 1815300) Television Watchman FD210BE; Sony Corporation; (ID = 1815302) Television
Use red slider bar for more.
Watchman FD210BE; Sony Corporation; (ID = 2235916) Television

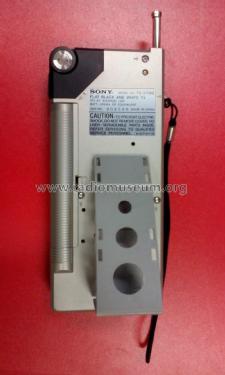

Sony Corporation;: Watchman FD210BE [Television] ID = 2235916 834x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Watchman FD210BE, Sony Corporation; Tokyo:
The first flat Tv

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1982 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 4 x 1,2 / 4 x 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Watchman FD210BE - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 87 x 198 x 33 mm / 3.4 x 7.8 x 1.3 inch
Notes The Sony FD210BE is the second model of the "Watchman" family, very similar to the model FD200 introduced 1982 for the Japanese market.
2"/5 cm b/w special CRT. CCIR B/G/I VHF/UHF tuner. Sound IF switchable 5.5 to 6 MHz.

Der Sony FD-210 ist das zweite Modell aus der "Watchman" Familie, recht ähnlich dem Modell FD-200 welches 1982 auf dem japanischen Markt erhältlich war.
Spezial-Bildröhre mit abgewinkeltem Elektronen-Strahlsystem. Die Ton-ZF ist von 5,5 auf 6 MHz umschaltbar.

Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Source of data -- Collector info (Sammler)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
