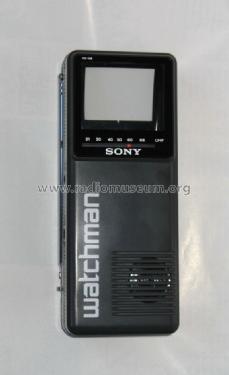

Watchman FD-10B

Watchman FD-10B; Sony Corporation; (ID = 675956) Television Watchman FD-10B; Sony Corporation; (ID = 1136356) Television
Watchman FD-10B; Sony Corporation; (ID = 1136357) Television Watchman FD-10B; Sony Corporation; (ID = 1136360) Television
Watchman FD-10B; Sony Corporation; (ID = 1136363) Television Watchman FD-10B; Sony Corporation; (ID = 1136364) Television
Watchman FD-10B; Sony Corporation; (ID = 1136366) Television Watchman FD-10B; Sony Corporation; (ID = 1136367) Television
Watchman FD-10B; Sony Corporation; (ID = 1136369) Television Watchman FD-10B; Sony Corporation; (ID = 1136540) Television
Use red slider bar for more.
Watchman FD-10B; Sony Corporation; (ID = 675956) Television
Sony Corporation;: Watchman FD-10B [Television] ID = 675956 731x885
Select picture or schematic to display from thumbnails on the right and click for download.
For model Watchman FD-10B, Sony Corporation; Tokyo:
Kaunas Lithuania

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1987 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Other, details in remarks or not known. / 240; 6; 4 x 1,2; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.13 inch = 2.9 cm
Power out
from Radiomuseum.org Model: Watchman FD-10B - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Sony FD-10B Watchman; 2"/5 cm b/w special CRT, CCIR I standard UHF tuner with red scale pointer, audio only operation, built-in telescopic antenna, earphone jack, ~410 g, black & white body colors, optional screen magnifier, 1.6 watts power consumption with operation time 5/35 hours. Mains voltage operation with optional 240/6 V power supply, optional accu recharger available.
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
