Mega Watchman FD-500 B

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 201956

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Mega Watchman FD-500 B - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 152 x 229 x 152 mm / 6 x 9 x 6 inch
  • Notes

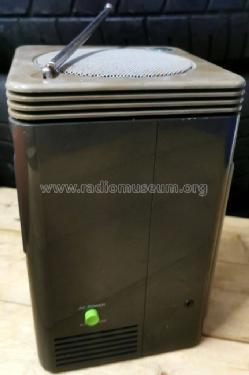

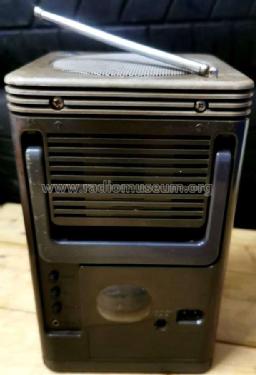

  • Sony FD-500B Mega Watchman;
    5" b/w TV with European TV standard ( PAL ), VHF/UHF tuner, AM/FM radio. Built-in telescopic antenna, earphone jack.

  • Net weight (2.2 lb = 1 kg)
  • 2.250 kg / 4 lb 15.3 oz (4.956 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
