• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168504

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

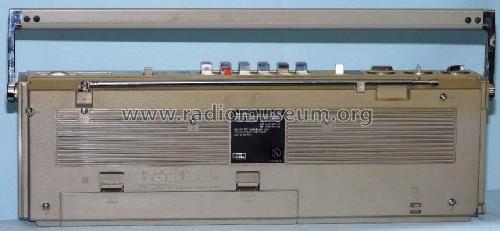

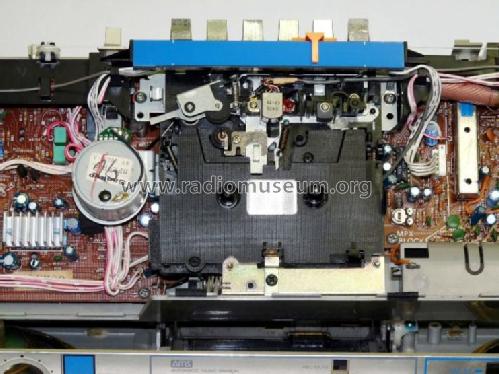

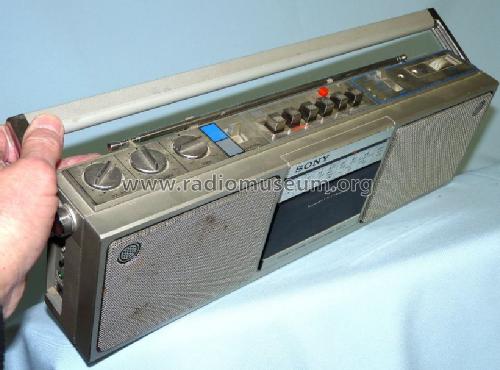

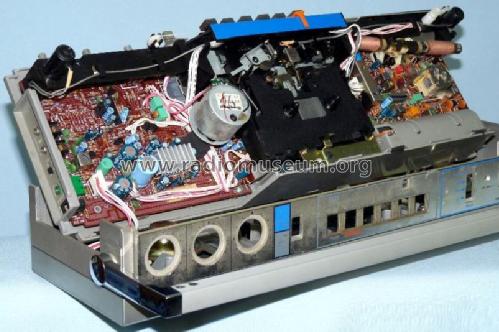

• Model: Stereo Cassette Corder 3-Bands CFS-5L - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 140 x 80 mm / 17.3 x 5.5 x 3.1 inch

• Notes
• FM/MW/LW Stereo Cassette-Corder
  Frequenzbereiche: UKW 87,6-107 MHz, MW 530-1605 kHz, LW 150-255 kHz.
  Anschluß für ext. Netzgerät DC-9 Volt, 2 eingebaute Electretmikrofone, Eingang für 2 ext. Mikrofone über Klinkenbuchsen 3,5 mm, Kopfhöreranschluß, AMS (Automatic Music Sensor), 3 tlg. Teleskopantenne (85 cm), Ferritantenne 14 cm.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
