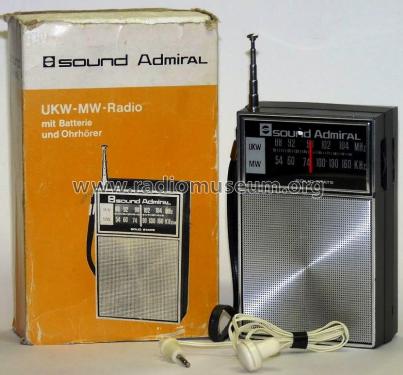

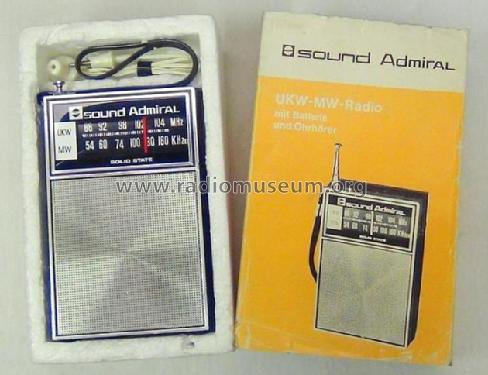

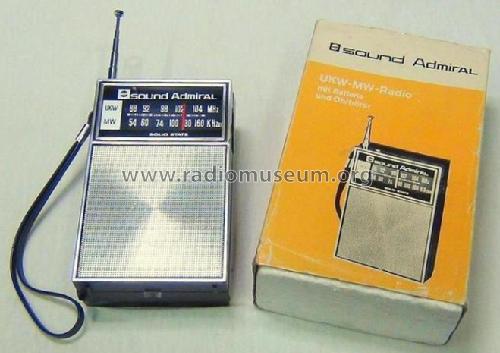

Interrading Ltd.,: Sound Admiral [Radio] ID = 820620 651x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Vanica | ||||
|---|---|---|---|---|---|
| Year: 1971–1975 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch |
| Power out | 0.1 W (unknown quality) |
| from Radiomuseum.org | Model: Sound Admiral - Interrading Ltd., HongKong |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 75 x 120 x 38 mm / 3 x 4.7 x 1.5 inch |
| Notes | Frequenzbereich: UKW 88...104 MHz; MW 540...1600 kHz. Teleskopantenne 43 cm. Ferritantenne 5,5 cm. Ohrhöreranschluß über Klinke 3,5 mm. Made in Hongkong. Sound Admiral 9 Transistor pocket radio |
| Net weight (2.2 lb = 1 kg) | 0.250 kg / 0 lb 8.8 oz (0.551 lb) |
Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
