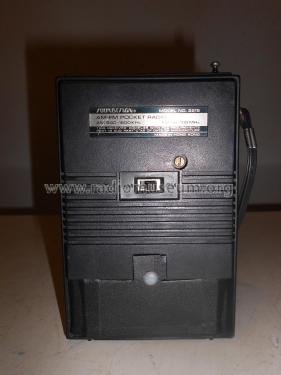

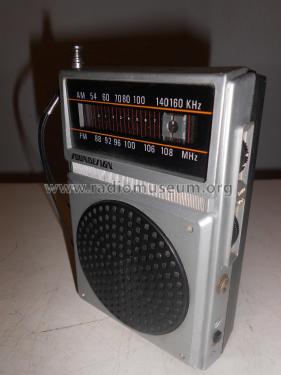

AM-FM Pocket Radio No. 2215
Soundesign Corporation; Jersey City, NJ
- Country
- United States of America (USA)
- Manufacturer / Brand
- Soundesign Corporation; Jersey City, NJ
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 308414
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM-FM Pocket Radio No. 2215 - Soundesign Corporation; Jersey
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 95 x 147 x 43 mm / 3.7 x 5.8 x 1.7 inch
- Notes
-
controllo volume - antenna telescopica esterna - antenna interna in ferrite . presa per auricolare - commutatore AM/FM - maniglia di trasporto - presa per alimentazione esterna - frequency range: AM 540/1600 kHz - FM 88/108 MHz.
Made in Hong Kong.
- Net weight (2.2 lb = 1 kg)
- 0.450 kg / 0 lb 15.9 oz (0.991 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
