Tube tester L3-3 {Л3-3} old

Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 169068) Equipment

Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 169167) Equipment
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 327915) Equipment Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 212933) Equipment
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 212934) Equipment Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 212935) Equipment
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 457687) Equipment Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 457688) Equipment
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 505177) Equipment Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 746725) Equipment
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 1129965) Equipment Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 1129966) Equipment
Use red slider bar for more.
Tube tester L3-3 {Л3-3}; Sovnarhoz - (ID = 327915) Equipment
Sovnarhoz -: Tube tester L3-3 {Л3-3} [Equipment] ID = 327915 800x460

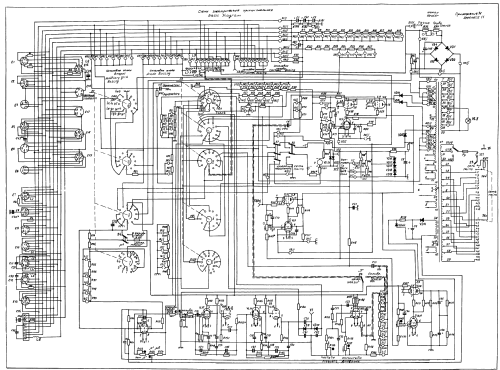

Select picture or schematic to display from thumbnails on the right and click for download.

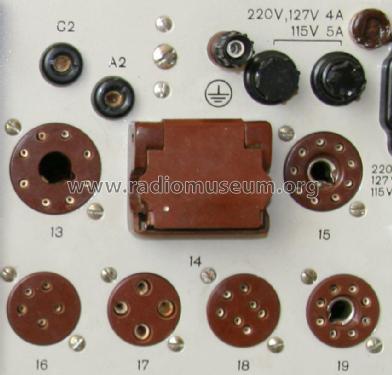

For model Tube tester L3-3 {Л3-3} old, Sovnarhoz - Moskovskij Sovnarhoz, Moscow

Country:  Soviet Union
Manufacturer / Brand:  Sovnarhoz - Moskovskij Sovnarhoz, Moscow
Year: 1970–1989 Category: Service- or Lab Equipment
Valves / Tubes 15: 6П1П 6П1П 6П1П 6П1П 6Н3П 6Н3П 6Н3П 6Ж3П 6Ж3П 6Ж3П 6Ж3П 6Ж3П СГ15П СГ15П СГ15П
Details
Power type and voltage Alternating Current supply (AC) / 115, 127, 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Tube tester L3-3 {Л3-3} [old] - Sovnarhoz - Moskovskij
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 312 x 225 mm / 20.1 x 12.3 x 8.9 inch
Notes Current: 115V/400Hz or 127,220V/50Hz. Power: 115V/400Hz or 127,220V/50Hz.
This is one of the best tube testers. It is capable of testing in ranges of: Ua 5-300V stabil., 150mA max., Ug2 10-300V stabil., 15mA max., Ug1 -0,5 to -100V in two ranges, leak current resolution 2µA, Rk 0-600 ohm in 15 ranges, Ck 0-10-100 µF, Uf 1-14V fine reg., 1,2A, Uf 2,5-7V in 5 steps 3A max, Uf 10 and 13V, 1,7A max plus 15 and 25V, 1,3A max. All Uf voltages AC or DC. S (Gm) is measured in 7 ranges from 0,75-75 mA/V.(µmhos) Ia is measured from 1,5 to 150mA in 7 ranges. Test signal is 1400 Hz, filter to suppress harmonics. Internal calibration circuits for easy and extremely accurate calibration of S(mA/V) and Leak (µAmp). Symmetrical ac voltage up to 2x500V available for testing rectifiers full load.
Warning: Many test cards are incorrect and may even lead to damage of the equipment. Not recommended for common use !
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Konstantin Chachin. See "Data change" for further contributors.
