Sparton 10

Sparton 10 ; Sparks-Withington Co (ID = 1349927) Radio

Sparton 10 ; Sparks-Withington Co (ID = 1349928) Radio

Sparton 10 ; Sparks-Withington Co (ID = 1349929) Radio

Sparton 10 ; Sparks-Withington Co (ID = 1349930) Radio

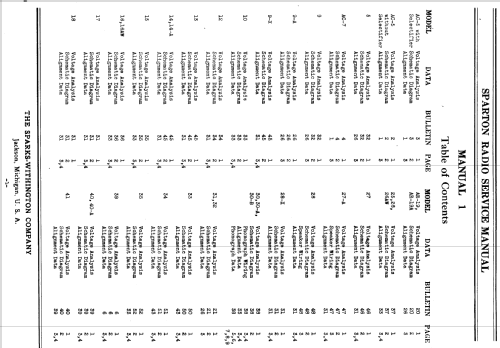

Sparton 10 ; Sparks-Withington Co (ID = 1349941) Radio

Sparton 10 ; Sparks-Withington Co (ID = 669168) Radio
Sparton 10 ; Sparks-Withington Co (ID = 246074) Radio Sparton 10 ; Sparks-Withington Co (ID = 246075) Radio
Sparton 10 ; Sparks-Withington Co (ID = 246076) Radio Sparton 10 ; Sparks-Withington Co (ID = 246077) Radio
Sparton 10 ; Sparks-Withington Co (ID = 757636) Radio Sparton 10 ; Sparks-Withington Co (ID = 757637) Radio
Sparton 10 ; Sparks-Withington Co (ID = 996820) Radio Sparton 10 ; Sparks-Withington Co (ID = 996821) Radio
Sparton 10 ; Sparks-Withington Co (ID = 1517105) Radio
Use red slider bar for more.
Sparton 10 ; Sparks-Withington Co (ID = 246074) Radio

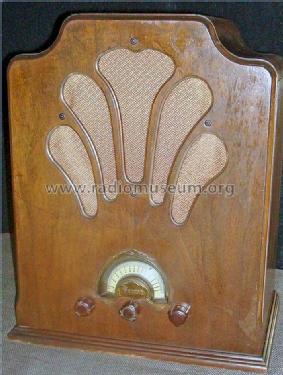

Sparks-Withington Co: Sparton 10 [Radio] ID = 246074 644x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sparton 10, Sparks-Withington Co., (Sparton); Jackson, Michigan:
Ebay Nr. 280015437806 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Sparks-Withington Co., (Sparton); Jackson, Michigan
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 35 35 35 27 27 47 80
Main principle Superhet with RF-stage; ZF/IF 172,5 kHz; 1 AF stage(s); Screengrid 1926-1935
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100-130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Sparton 10 - Sparks-Withington Co., Sparton
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 378 x 457 x 267 mm / 14.9 x 18 x 10.5 inch
Notes Bandfilter input circuits.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Collector's Guide to Antique Radios 4. Edition (Rider's 2-3, 2-4)
Literature/Schematics (1) Machine Age to Jet Age II (page 281.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 252.)
