• Year
  • 1929/1930
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 58476

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-130 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material

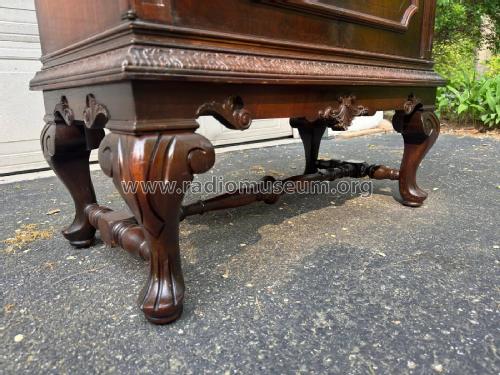

  • Wooden case
  • from Radiomuseum.org
  • Model: Sparton 110 Equasonne - Sparks-Withington Co., Sparton
  • Shape
  • Console with any shape - in general
  • Notes
  • One dial (primary tuning control knob)

  • Price in first year of sale
  • 395.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

 Collections | Museums | Literature

Collections

The model Sparton 110 Equasonne is part of the collections of the following members.
