- Country
- United States of America (USA)
- Manufacturer / Brand
- Sparks-Withington Co., (Sparton); Jackson, Michigan
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 208410

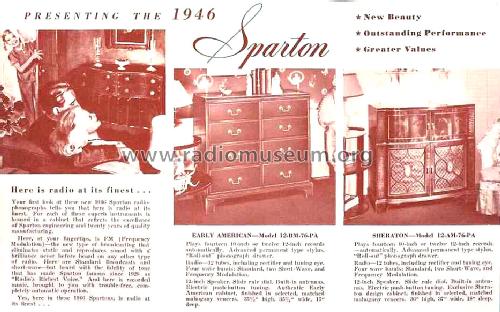

Scanned from a Sparton folder 1946.
Scanned from a Sparton folder 1946.
- Number of Tubes
- 12
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 12-BM-76-PA - Sparks-Withington Co., Sparton
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 35.75 x 35.5 x 17 inch / 908 x 902 x 432 mm
- Notes
- The Sparks console model Sparton 12-BM-76-PA is an AC Operated 12 Tube Combination Phono-Radio, AM-FM Superheterodyne Receiver with built in Antenna. Electric push-button tuning, slide rule dial. Autthentic Early American cabinet, finished in selected matched mahagony veneers.
- External source of data
- Sparton folder 1946
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
