• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58788

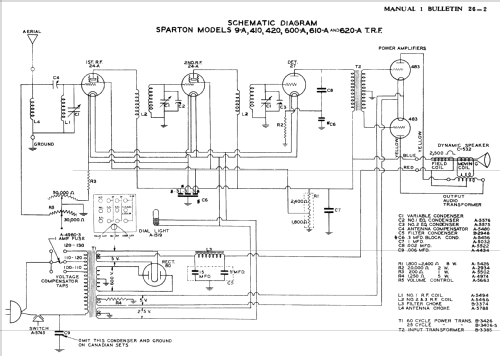

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 224 224 427 183/483 183/483 280

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 100-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

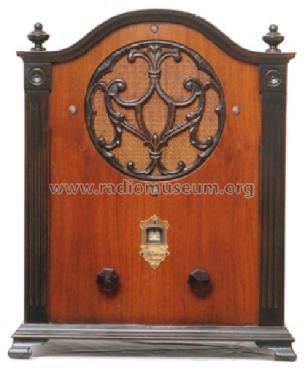

• Model: Sparton 410AC Junior - Sparks-Withington Co., Sparton

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 16 x 19.5 x 10 inch / 406 x 495 x 254 mm

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Machine Age to Jet Age II (page 282.)

• Literature/Schematics (1)
• Sparton Radio Service Manual (Sparton Manual 1, Bulletin 26-1,2,3)

• Literature/Schematics (2)
• Cathedral & Tombstone Radios (page 253.)
