• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138319

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7GT 6SK7GT 6SQ7GT 6F6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.81 inch = 12.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparton 5AM26-PS Ch= 5-26-PS - Sparks-Withington Co., Sparton

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)

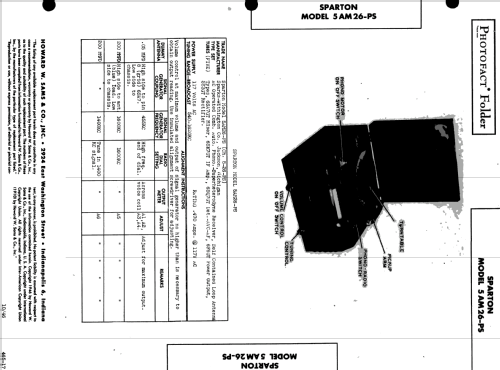

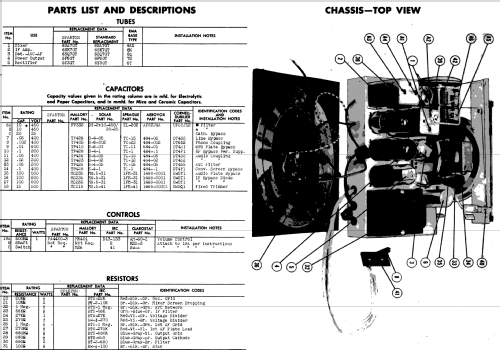

• Photofact Folder, Howard W. SAMS (Set 5 folder 465-17 date 10-46)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
