• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71825

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12A8 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

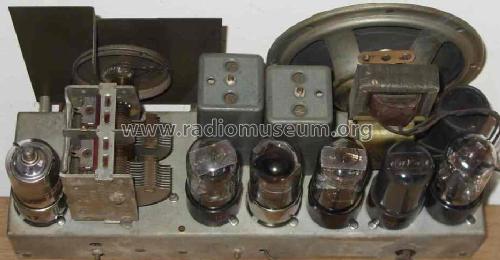

• Model: Sparton 6-66 [wood] - Sparks-Withington Co., Sparton

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 150 x 180 mm / 13 x 5.9 x 7.1 inch

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
