Chassis Ch= U24-03AA (24 Series)
Spartan, Div. of Magnavox
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spartan, Div. of Magnavox
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 197115

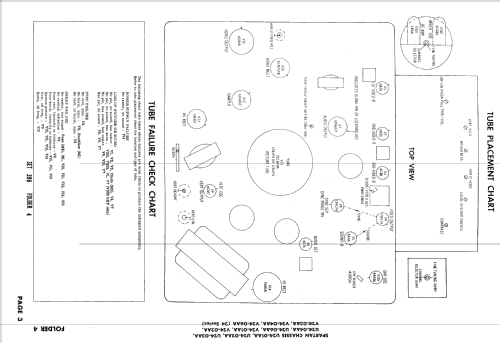

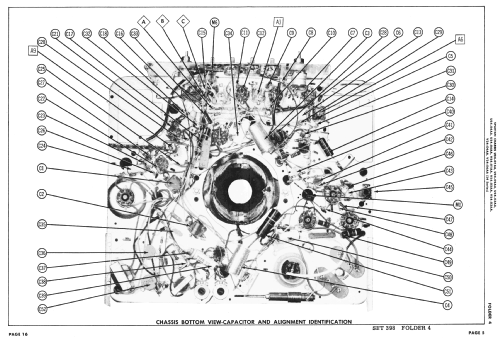

Sams Photofact Folders reference picture.

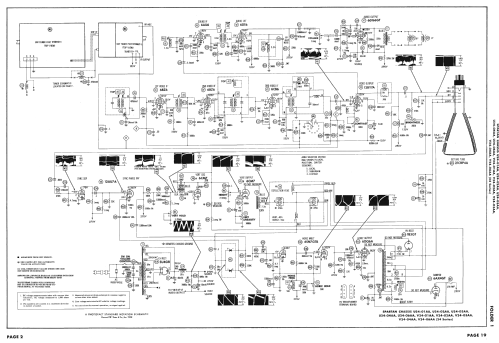

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6AF4A 6BN4 6CG8A 6BZ6 6BZ6 6CB6 12BY7A 6AU6 6DT6 6DG6GT 12AU7A 6CM7 6SN7GTB 6DQ6A 6AX4GT 1B3GT 5U4GB 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis Ch= U24-03AA - Spartan, Div. of Magnavox
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Spartan Chassis U24-03AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with UHF- tuner 700627-1 and picture tube 21CBP4A.
- Literature/Schematics (1)

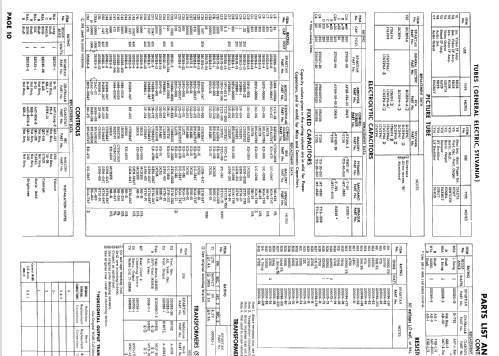

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 4)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 383 Folder 14-S dated 1-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
