- Country
- Canada
- Manufacturer / Brand
- Sparton of Canada; London, ON
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309977

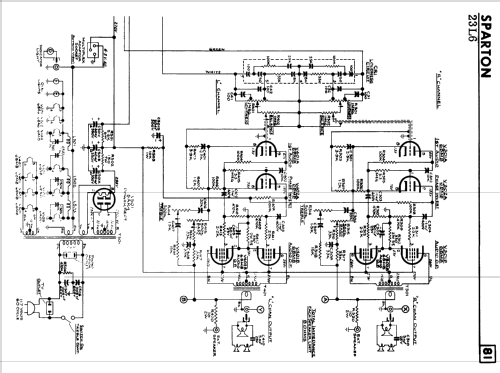

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23L6 - Sparton of Canada; London, ON
- Shape
- Console with any shape - in general
- Notes
-
The Sparton model 23L6 is an 11-tube AM/FM console radio with built-in stereo record changer and amplifier. Has a 10 inch woofer and 3.5 inch tweeter for each channel. With provisions for optional FM multiplex adapter.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1963 Supplement 63)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
