- Country
- Canada
- Manufacturer / Brand
- Sparton of Canada; London, ON
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179514
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org

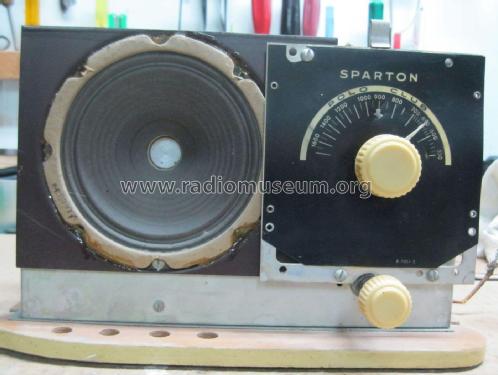

- Model: 509 - Sparton of Canada; London, ON
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 305 x 184 x 194 mm / 12 x 7.2 x 7.6 inch
- Notes
-
Has transformer which differs from the USA model 608. Black Bakelite case. Also found in Ivory and possibly other colours.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Canada Schematics Sparton page 64
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 298 models, 120 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sparton of Canada; London, ON
