• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59492

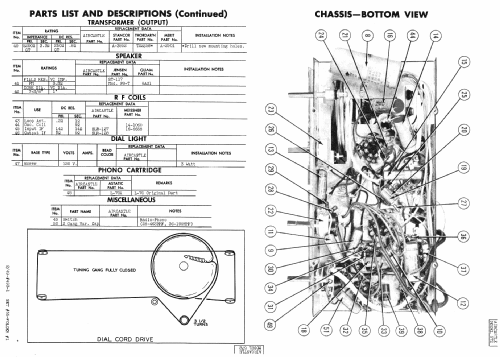

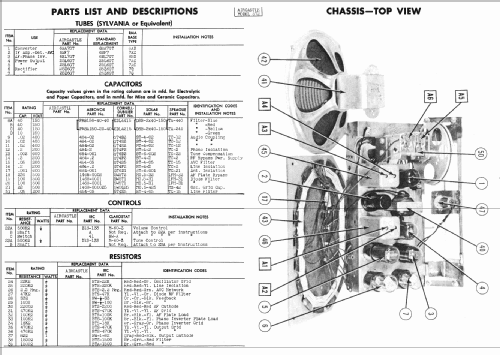

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm
  • from Radiomuseum.org
  • Model: Aircastle 572 - Spiegel Inc. Continental;
  • Shape
  • Console with any shape - in general
  • Notes
  • AC Operated Combination Phono-Radio Superheterodyne Receiver
    with Loop Antenna

    AM: 540-1700kc

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
