Aircastle 9012I

Spiegel Inc. (Continental); Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 59610

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC: 50 to 60 cycles, 105 to 120V or DC: 105 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 inch = 9.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Aircastle 9012I - Spiegel Inc. Continental;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 7.25 x 4.5 x 5.25 inch / 184 x 114 x 133 mm
  • Notes

  • The Aircastle 9012I is an AC/DC operated 4 tube BC band receiver.  The BC band frequency tuning range is 540 to 1720kHz.

    The following models share the same chassis and schematic:

    Model Catalog Number Cabinet Color
    9012I A76S 375 Ivory
    9012W A76S 374 Walnut

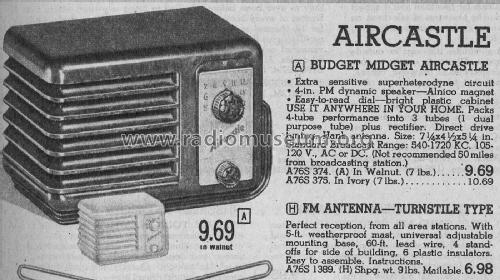

  • Price in first year of sale
  • 10.69 $
  • External source of data
  • Ernst Erb
