Air Castle AP2460
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1940
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 59668
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Air Castle AP2460 - Spiegel Inc. Continental;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 10.5 x 6.625 x 6.5 inch / 267 x 168 x 165 mm
- Notes
-
Vibrator for B+.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb

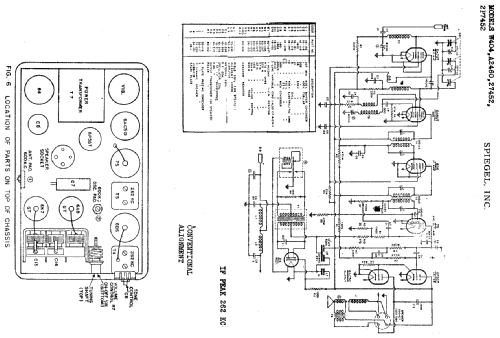

- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in

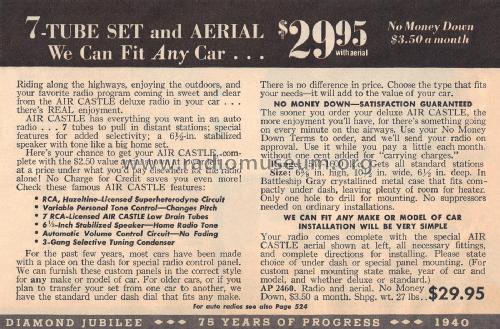

- Spiegel Catalogs (Aircastle) (Spring/Summer 1940, No. 149, page 464.)
- Literature/Schematics (1)
- Riders 11-18
