• Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 300333

 Technical Specifications

  • Number of Tubes
  • 7
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

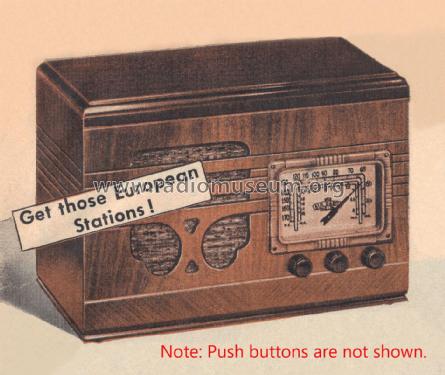

  • Model: Air Castle AP2014 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 13.5 x 8.5 x 6.5 inch / 343 x 216 x 165 mm
  • Notes
  •

     Model  Differences
     AP2010   AC/DC-set
     AP2011  AC/DC-set with all-wave doublet aerial included
     AP2014  AC model with 4 push buttons
     AP2015  AC model with 4 push buttons, all-wave doublet aerial included



  • Price in first year of sale
  • 21.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
