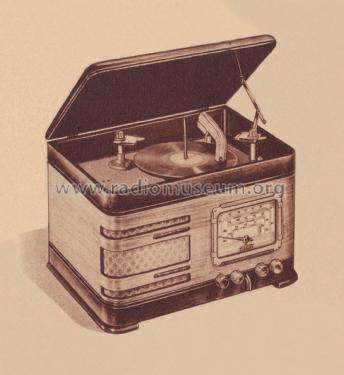

Air Castle CP5021
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300807
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Details
- Record Player (perh.Changer); Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz; 105 - 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle CP5021 - Spiegel Inc. Continental;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 19 x 15 x 13.25 inch / 483 x 381 x 337 mm
- Notes
-
Model Differences CP5020 Base model with loop antenna CP5021 Base model with additional SW aerial included
- Price in first year of sale
- 52.95 $
- Mentioned in
- Spiegel Catalogs (Aircastle) (Spring/Summer 1941, No. 151, page 455.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 13 = 1942 and before (page 13-54)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
