Air Castle CP5100 Ch= 1070B
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301267
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Dry Batteries / 1.5 & 3 x 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Air Castle CP5100 Ch= 1070B - Spiegel Inc. Continental;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 18 x 9.75 x 9.125 inch / 457 x 248 x 232 mm
- Notes
-
Model Differences CP5100 Batteries included CP5101 Batteries and all-wave doublet aerial included CP5102 Upgraded battery kit included CP5103 Upgraded battery kit and all-wave doublet aerial included Note: The schematic reference and other electrical details may be an earlier version of this model
- Price in first year of sale
- 19.95 $
- Mentioned in

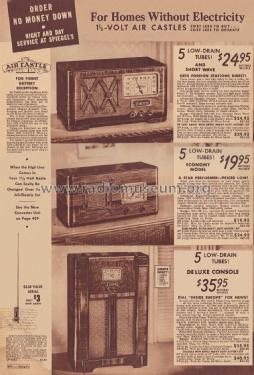

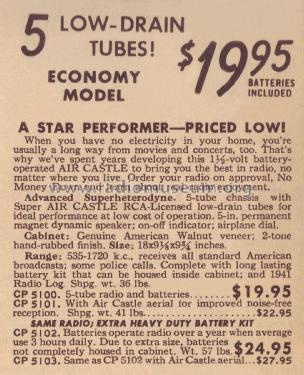

- Spiegel Catalogs (Aircastle) (Spring/Summer 1941, No. 151, page 456.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 9 = 1938 and before (pages 9-33 and 9-34)
