• Year
  • 1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 303294

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Details
  • Record Player (perh.Changer); Radio with other functions
  • Power type and voltage
  • Dry Batteries / 1.5 & 2 x 45? Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Air Castle EP2126 - Spiegel Inc. Continental;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 17.5 x 11.5 x 13.5 inch / 445 x 292 x 343 mm
  • Notes
  •

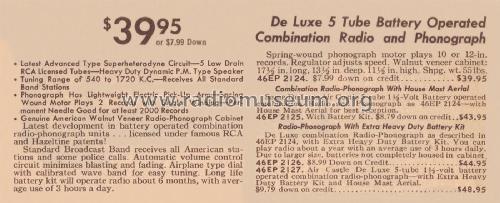

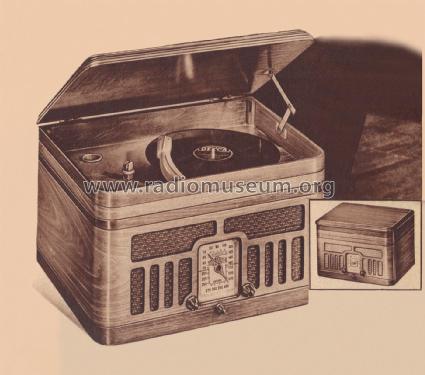

    Radio-Phonograph (with spring motor).

     Model  Differences
     EP2124    1 1/2-volt battery pack included
     EP2125  1 1/2-volt battery pack and house mast aerial included
     EP2126  1 1/2-volt battery operated with upgraded battery kit included
     EP2127  1 1/2-volt battery operated with upgraded battery kit and house mast               aerial included
  • Price in first year of sale
  • 44.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
