Aircastle 06-F

Aircastle 06-F ; Spiegel Inc. (ID = 399989) R-Player

Aircastle 06-F ; Spiegel Inc. (ID = 399991) R-Player
Aircastle 06-F ; Spiegel Inc. (ID = 399994) R-Player
Use red slider bar for more.
Aircastle 06-F ; Spiegel Inc. (ID = 399994) R-Player
Spiegel Inc.: Aircastle 06-F [R-Player] ID = 399994 853x662
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle 06-F, Spiegel Inc. (Continental); Chicago:

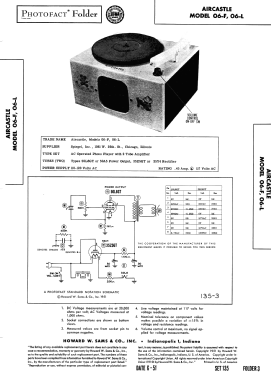

Sams Photofact Bild.

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1951 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: 25L6GT 35Z5GT
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Aircastle 06-F - Spiegel Inc. Continental;
Material Various materials
Shape Tablemodel, with any shape - general.
Notes

The Spiegel Model Aircastle 06-F is an AC Operated Phono Player with 2 Tube Amplifier.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-1951, Set 135, Folder 3)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
