Aircastle 153

Aircastle 153; Spiegel Inc. (ID = 400948) Radio

Aircastle 153; Spiegel Inc. (ID = 400949) Radio

Aircastle 153; Spiegel Inc. (ID = 400950) Radio

Aircastle 153; Spiegel Inc. (ID = 400951) Radio
Aircastle 153; Spiegel Inc. (ID = 400952) Radio
Use red slider bar for more.
Aircastle 153; Spiegel Inc. (ID = 400952) Radio
Spiegel Inc.: Aircastle 153 [Radio] ID = 400952 556x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle 153, Spiegel Inc. (Continental); Chicago:

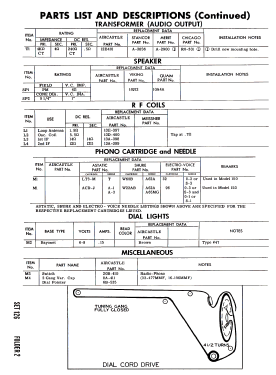

Sams Photofact Bild.

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BE6 12BA6 12AT6 12AT6 50C5 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.25 inch = 23.5 cm
Power out
from Radiomuseum.org Model: Aircastle 153 - Spiegel Inc. Continental;
Material Wooden case
Shape Console with any shape - in general
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 126 Folder 2)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
