• Country
• United States of America (USA)

• Manufacturer / Brand
• Spiegel Inc. (Continental); Chicago

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 362923

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12BE6 6BJ6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117=105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

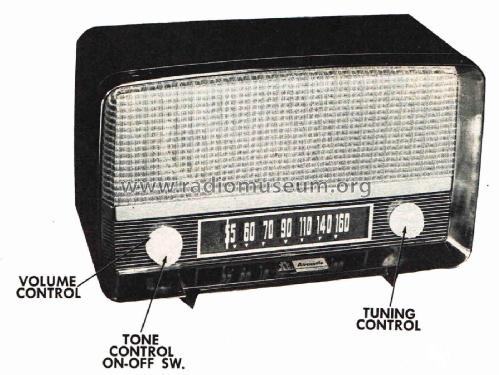

• Model: Aircastle 652.6T1V 25TV2-43-9045C - Spiegel Inc. Continental;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Aircastle model 652.6T1V is an AC/DC operated AM superheterodyne receiver.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 205, folder 2, dated 6-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
