Aircastle 7B

Aircastle 7B; Spiegel Inc. (ID = 405073) Radio

Aircastle 7B; Spiegel Inc. (ID = 405074) Radio

Aircastle 7B; Spiegel Inc. (ID = 405076) Radio

Aircastle 7B; Spiegel Inc. (ID = 405078) Radio

Aircastle 7B; Spiegel Inc. (ID = 405080) Radio

Aircastle 7B; Spiegel Inc. (ID = 405082) Radio

Aircastle 7B; Spiegel Inc. (ID = 405084) Radio

Aircastle 7B; Spiegel Inc. (ID = 405085) Radio
Aircastle 7B; Spiegel Inc. (ID = 405090) Radio
Use red slider bar for more.
Aircastle 7B; Spiegel Inc. (ID = 405090) Radio

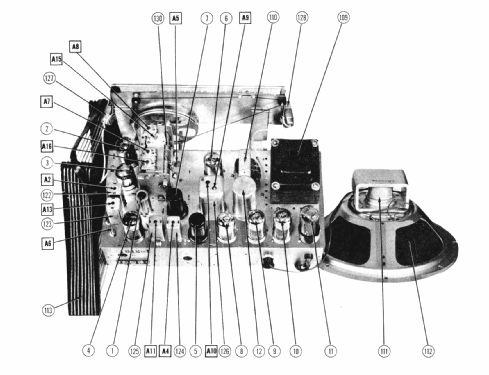

Spiegel Inc.: Aircastle 7B [Radio] ID = 405090 748x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle 7B, Spiegel Inc. (Continental); Chicago:
Aircastle 7B

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6BA6 7Q7 7F8 7AH7 6SH7 7A6 6SQ7 7F7 7C5 7C5 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 inch = 24.1 cm
Power out
from Radiomuseum.org Model: Aircastle 7B - Spiegel Inc. Continental;
Material Wooden case
Shape Console with any shape - in general
Notes

AC Operated Combination Phono Radio, AM-FM Superheterodyne Receiver
with Loop Antenna

AM: 540-1700kc     FM: 88-108Mc

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set #52-Folder #1)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
