Aircastle 8XC

Aircastle 8XC; Spiegel Inc. (ID = 612034) Radio Aircastle 8XC; Spiegel Inc. (ID = 614574) Radio

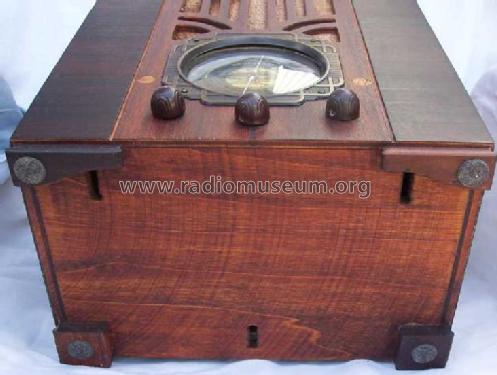

Aircastle 8XC; Spiegel Inc. (ID = 614575) Radio Aircastle 8XC; Spiegel Inc. (ID = 614576) Radio
Use red slider bar for more.

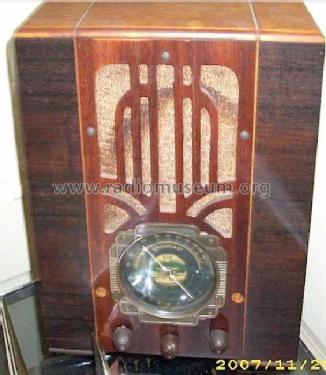

Aircastle 8XC; Spiegel Inc. (ID = 612034) Radio
Spiegel Inc.: Aircastle 8XC [Radio] ID = 612034 610x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle 8XC, Spiegel Inc. (Continental); Chicago:
1936 aircastle tombstone radio model 8XC from my collection

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 43 80
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7.5 inch = 19.1 cm
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Aircastle 8XC - Spiegel Inc. Continental;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 14 x 17 x 10 inch / 356 x 432 x 254 mm
Net weight (2.2 lb = 1 kg) 11.350 kg / 25 lb 0 oz (25 lb)
Price in first year of sale 36.00 CDN

Model page created by John Allen. See "Data change" for further contributors.
