Aircastle REV248

Aircastle REV248; Spiegel Inc. (ID = 400939) Radio

Aircastle REV248; Spiegel Inc. (ID = 400940) Radio

Aircastle REV248; Spiegel Inc. (ID = 400941) Radio

Aircastle REV248; Spiegel Inc. (ID = 400942) Radio
Aircastle REV248; Spiegel Inc. (ID = 400938) Radio
Use red slider bar for more.
Aircastle REV248; Spiegel Inc. (ID = 400938) Radio
Spiegel Inc.: Aircastle REV248 [Radio] ID = 400938 748x672
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle REV248, Spiegel Inc. (Continental); Chicago:

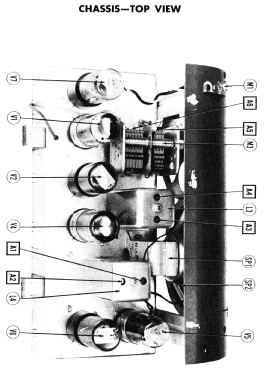

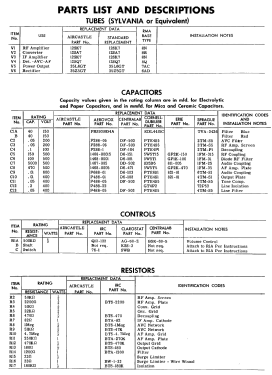

Sams Photofact Bild.

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Aircastle REV248 - Spiegel Inc. Continental;
Shape Tablemodel, with any shape - general.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 127 Folder 2)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
