Aircastle Solid State 10 SP-10H

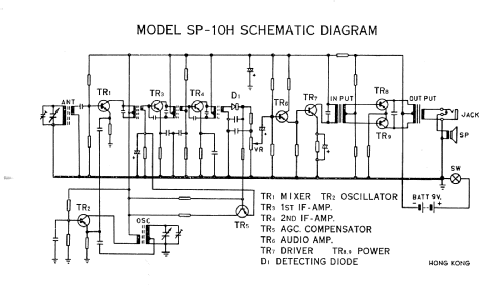

Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 1549274) Radio
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189544) Radio Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189541) Radio
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189542) Radio Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189545) Radio
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189546) Radio Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189547) Radio
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 1549269) Radio Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 1549270) Radio
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 1549271) Radio Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 1549272) Radio
Use red slider bar for more.
Aircastle Solid State 10 SP-10H; Spiegel Inc. (ID = 2189544) Radio
Spiegel Inc.: Aircastle Solid State 10 SP-10H [Radio] ID = 2189544 1200x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle Solid State 10 SP-10H, Spiegel Inc. (Continental); Chicago:
front view swiveled right

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.13 W (0.2 W max.)
from Radiomuseum.org Model: Aircastle Solid State 10 SP-10H - Spiegel Inc. Continental;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.625 x 3.25 x 1.25 inch / 143 x 83 x 32 mm
Notes

Aircastle Solid State Portable AM Receiver Model SP-10H.

Made in Hong Kong.

Although '10' is shown in both the name of the radio (SP-10H) and on the front logo of the radio, there are only 9 transistors in the radio.   Civil Defense marks are present on the station dial.

Model page created by Franz Scharner. See "Data change" for further contributors.
